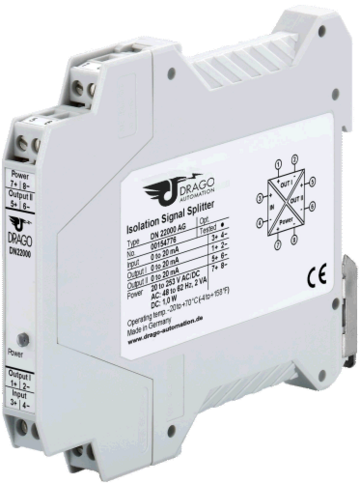

Isolation Signal Splitter DN 22000
Conversion, Isolation and Distribution of Standard Signals
With the Isolation Signal Splitter DN 22000 DRAGO is extending its offer high-functional and high-reliable components of the interface technique.
- Fixed ranges
Ready to use without any settings - 4-Port Isolation
Protection against erroneous measurements due to parasitic voltages or ground loops - Ultra-small-sized housing
12.5 mm housing with plug-in screw terminal blocks - High accuracy
No falsification of measured signal - Protective Separation
Protects service personnel and downstream devices against impermissibly high voltage - Maximum reliability
No maintenance costs - 5 Years Warranty
The Isolation Signal Splitter DN 22000 is used for isolation, conversion and distribution of 0/4...20 mA and 0...5/10 V standard signals. The input and two outputs each can be separately configured. The signal combination is selected by the Order No. Its high level of reliability, extremely compact form, and cost optimized design make the DN 22000 the first choice in its class!
The slim housing with 12.5 mm width saves space in the switch cabinet and facilitates by the practical plug-in screw terminal blocks the assembly. A green LED on the front of the unit has been provided to monitor the power supply.
The Protective Separation with high isolation level provides protection for personnel and downstream devices against impermissibly high voltage and make the DN 22000 universally applicable for all measurement and industrial applications.
Product line
| Devices | Order No. | ||||
|---|---|---|---|---|---|
| Isolation Signal Splitter | DN 22 | X | X | X | -XX |
| 80 ... 240 V AC | -MP | ||||
| 24 V DC | -LV | ||||
| Input | 0 ... 20 mA | 0 | |||
| 4 ... 20 mA | 1 | ||||
| 0 ... 5 V | 2 | ||||
| 0 ... 10 V | 3 | ||||
| Output I | 0 ... 20 mA | 0 | |||
| 4 ... 20 mA | 1 | ||||
| 0 ... 5 V | 2 | ||||
| 0 ... 10 V | 3 | ||||
| Output II | 0 ... 20 mA | 0 | |||
| 4 ... 20 mA | 1 | ||||
| 0 ... 5 V | 2 | ||||
| 0 ... 10 V | 3 |
Data sheet archive:
The products are no longer available!
Downloads / Links
Follow-up product
Technical Data
Input
| Input signal | 0...20 mA 4...20 mA 0...5 V 0...10 V See order information |
|
| Input resistance | Current input Voltage input |
30 Ohm 500 kOhm |
| Overload | Current input Voltage input |
≤ 200 mA ≤ 30 V |
Output I, Output II
| Output signal | 0...20 mA 4...20 mA 0...5 V 0...10 V See order information |
|
| Load | Current output Voltage output |
≤ 10 V (500 Ohm at 20 mA) ≤ 10 mA (1 kOhm at 10 V) |
| Offset | 20 µA , 10 mV | |
| Ripple | < 10 mVrms | |
General Data
| Transmission error | < 0.1 % of final value | |
| Temperature coefficient 1) | < 0.015 % of final value /K | |
| Response time | < 5 ms | |
| Test voltage | 2.5 kV, 50 Hz Input against Output I against Output II against power supply |
|
| Working voltage 2) (Basic Insulation) |
Up to 600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1 between all circuits. |
|
| Protection against electrical shock | Protective separation to EN 61140 by reinforced insulation in accordance with EN 61010-1 up to 300 V AC/DC for overvoltage category II and pollution degree 2 between all circuits. |
|
| Ambient temperature | Operation Transport and storage |
0 to + 55 °C (+32 to +131 °F) -25 to +80 °C (-13 to +176 °F) |
| Power supply see order information | 80 ... 240 V AC, + 10 %, 48 ... 62 Hz, approx. 3 VA 24 V DC, working range: 20 ... 30 DC, approx. 1.5 W |
|
| EMC 3) | EN 61326 -1 | |
| Construction | 12.5 mm housing, protection type: IP 20 | |
| Weight | Approx. 100 g | |
- Average TC in specified operating temperature range
- As far as practicable the standards and rules mentioned above are considered by development and production of our devices. In addition the assembly rules for our devices are to be considered by installation in other equipments. For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent situated devices.
- Minor deviations possible during interference

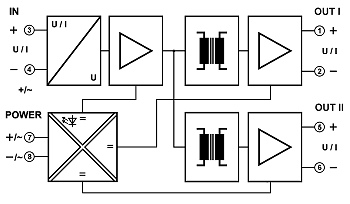

Block diagram
Terminal assignments
- 1 + Output I
- 2 − Output I
- 3 + Input
- 4 − Input
- 5 + Output II
- 6 − Output II
- 7 Power supply
- 8 Power supply
Pluggable screw clamp terminals
Wire cross-section max. 2.5 mm², Multi-wire connection max. 1 mm² (two wires with same cross-section)
